Securiclad
Certified & bespoke security panels

A full range of security panel systems to suit all requirements of physical protection against threat and risk.

Protecting your people, assets & infrastructure

Securiclad products are available in a variety of different compositions in order to satisfy a broad range of security requirements.

They provide security solutions at Loss Prevention Standard (LPS) 1175 Security Rating (SR) 2, 3, 4 and 5. Securiclad is approved for Government use.

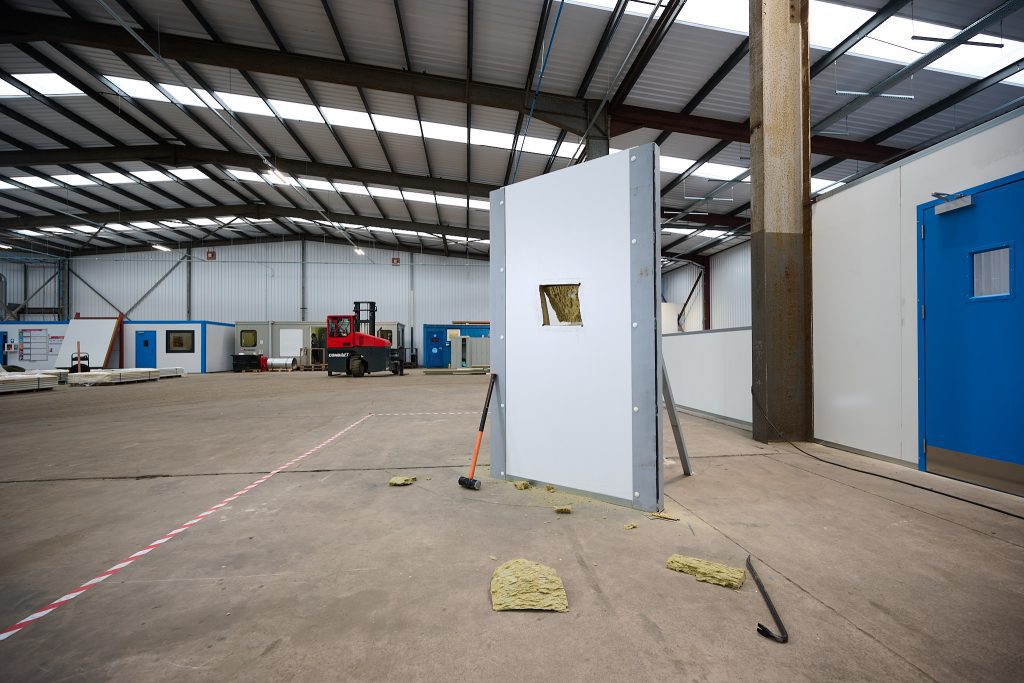

The highest rated system is designed to resist attack by tools including drills, gas torches, sledgehammers, felling axes, jigsaws and disc grinders.

Secure interior applications

New builds or retro-fitting

Anti-cut materials

Turnkey solution or supply-only

Bespoke design to order

Standalone or modular

LPS1175 ratings from SR2 to SR5

Non-combustible

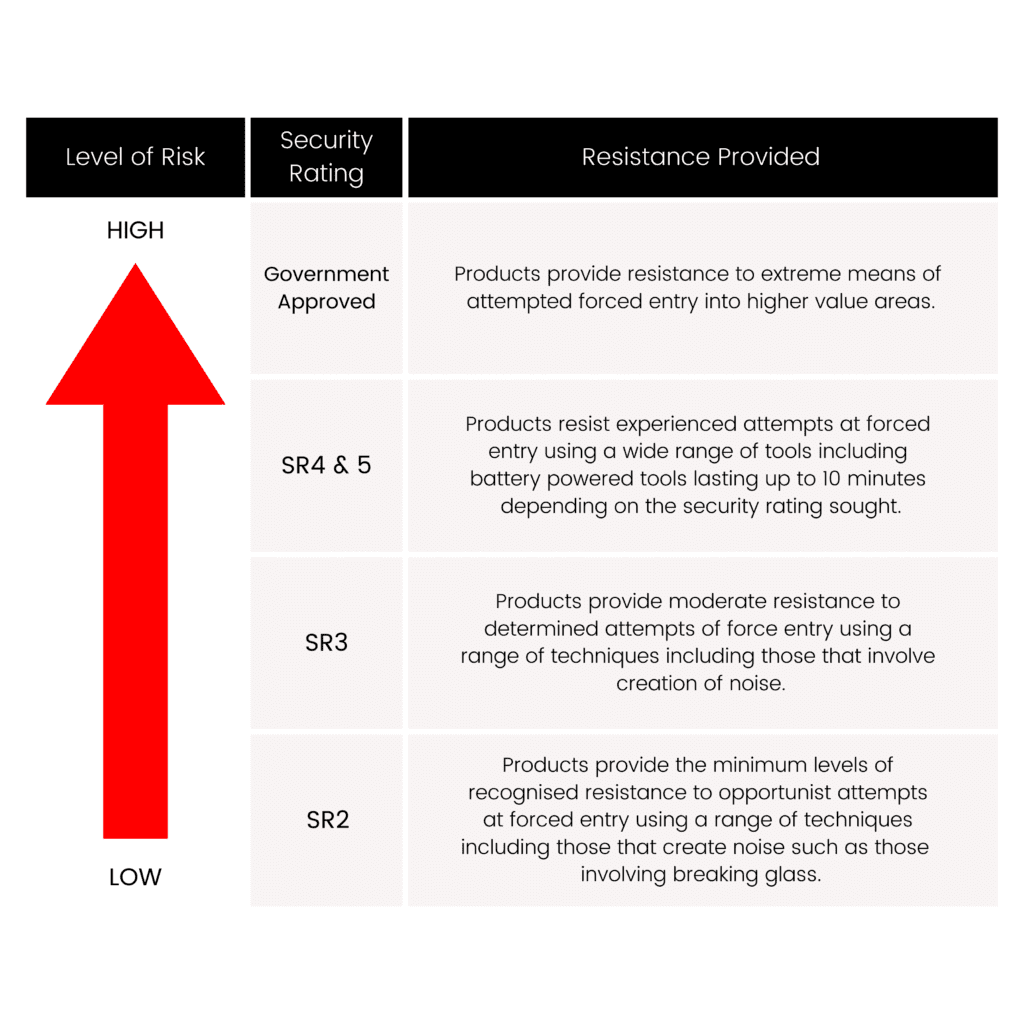

Security ratings

  • sr2
  • sr3
  • sr4
  • sr5

LPS 1175 SR2

15 minutes

3 minutes

Determined opportunistic attacks by bodily physical force using tools with a higher mechanical advantage

SR2 security panels hold a unique range of applications from; fire resistance, thermal performance, protection against forced entry and a wide selection of attack options.

Product highlights

  • Excellent insulation performance
  • Does not promote smoke or flame spread when exposed to flame
  • Excellent strength to weight ratio
  • Does not promote the growth of fungi or mildew

Standard specification

  • 1190mm module width
  • Architecturally flat
  • Stonewool core
  • White polyester lining 0.5mmm gauge
  • Minimum panel length – 1.8m
  • All panel lengths subject to technical verification

LPS 1175 SR3

20 minutes

5 minutes

Deliberate forced entry of well-protected premises using bodily physical force and a wide selection of attack options

SR3 security panels hold a unique range of applications from; fire resistance, thermal performance, protection against forced entry and a wide selection of attack options.

Product highlights

  • Excellent insulation performance
  • Does not promote smoke or flame spread when exposed to flame
  • Excellent strength to weight ratio
  • Does not promote the growth of fungi or mildew

Standard specification

  • 1190mm module width
  • Architecturally flat
  • Stonewool core
  • White polyester lining 0.5mmm gauge
  • Minimum panel length – 1.8m
  • All panel lengths subject to technical verification

LPS 1175 SR4

30 minutes

10 minutes

Experienced attempts at forced entry

SR4 security panels hold a unique range of applications from; fire resistance, thermal performance, protection against forced entry and a wide selection of attack options.

Product highlights

  • Excellent insulation performance
  • Does not promote smoke or flame spread when exposed to flame
  • Excellent strength to weight ratio
  • Does not promote the growth of fungi or mildew

Standard specification

  • 1190mm module width
  • Architecturally flat
  • Stonewool core
  • White polyester lining 0.5mmm gauge
  • Minimum panel length – 1.8m
  • All panel lengths subject to technical verification

LPS 1175 SR5

30 minutes

10 minutes

Serious attempts at forced entry with a range of battery power tools

SR5 security panels hold a unique range of applications from; fire resistance, thermal performance, protection against series attempts at forced entry and a wide range of battery power tools.

Product highlights

  • Excellent insulation performance
  • Does not promote smoke or flame spread when exposed to flame
  • Excellent strength to weight ratio
  • Does not promote the growth of fungi or mildew

Standard specification

  • 1190mm module width
  • Architecturally flat
  • Stonewool core
  • White polyester lining 0.5mmm gauge
  • Minimum panel length – 1.8m
  • All panel lengths subject to technical verification

Finishings

  • Tata Steel Colorcoat LG®
  • Colorcoat HPS 200 Ultra®
  • Tata Steel Colorcoat® PVDF
  • White Food Safe Laminate

Leather
grain

White BS 00E55

Goosewing Grey BS 10A05

Honesty BS 10C31

Mushroom BS 10B19

Moorland Green BS 12B21

Merlin Grey BS 18B25

Juniper Green BS 12B29

Anthracite RAL 7016

Van Dyke Brown BS 08B29

Sargasso RAL 5003

Black BS 00E53

For more information, please visit the Tata Steel website.

Scintilla®

White BS 00E55

Goosewing Grey BS 10A05

Hamlet RAL 9002

Merlin Grey BS 18B25

Anthracite RAL 7016

For more information, please visit the Tata Steel website.

PV F2

White RAL 9010

Alaska Grey RAL 7000

Silver RAL 9006

Oyster RAL 7035

Slate Grey RAL 7012

For more information, please visit the Tata Steel website.

White Food Safe Laminate

White Food Safe Laminate (WFSL) can be used in internal hygienic areas such as laboratories, data rooms and food preparation areas.

Features:

  • White, low-gloss, smooth surface
  • Highly formable
  • Non-toxicity
  • Corrosion protection
  • Wet-scrub resistance
  • Ease of cleaning
  • Scratch resistance
  • Water absorption

What next?

We’re on hand to help work with you to ensure your exact specifications are met.
